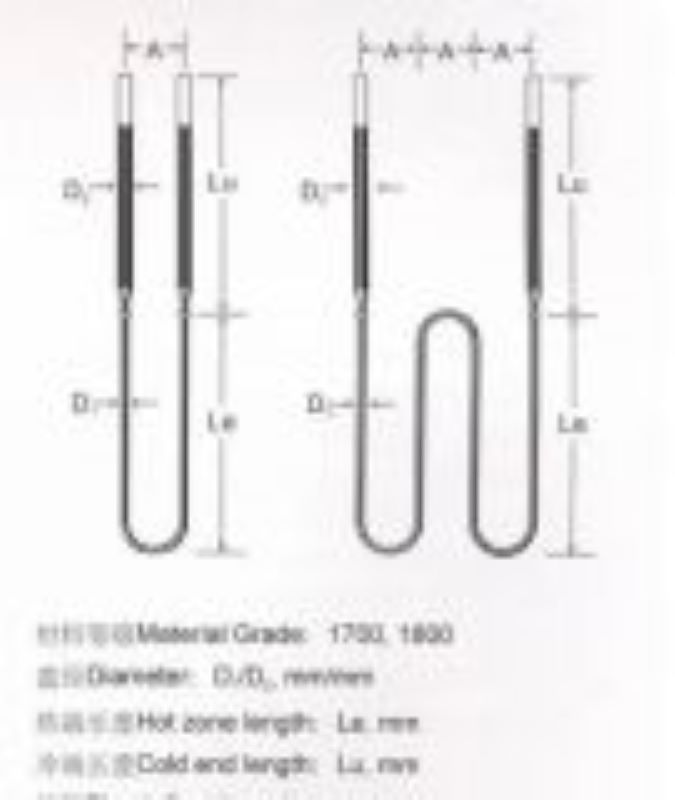

The Resistivity of W shape mosi2 heating element

The resistivity of MoSi2 increases with temperature. When connected to a constant voltage, the elements attain high power at lower temperatures and the power gradually reduces with the increasing temperature,

This shortens the time of the furnace to achieve the operating temperature. However, as the power of the elements reduces, the probability of element overheating also reduces.

The resistance of MOSI2 Heating element) does not age even when exposed to high temperatures during operation. The resistance drops only by a slight amount (≈ 5%) during the first period.

Due to the availability of such properties, a failed component can easily be replaced without affecting the performance of other components connected in series.

Advantages

Mosi2 heating elements have good stability and mechanical strength at high temperatures, and can maintain long-term stable performance at high

temperatures. In addition, Mosi2 heating elements also have excellent oxidation resistance and corrosion resistance, so they have along service life

when used at high temperatures.

Applications of MoSi₂ Heating Elements

Mosi2 heating element can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory

etc.Especially, Mosi2 heater is the requisite heating element in heat sintering process of high-performance ceramics, high rank synthetic crystalloid,

sophisticated structure cermets, glass fiber, optical fiber as well as high rank alloy steel, and it is the best environment-protecting product in the

heating area in the 21st Century.

1.Suitable for the intermittent high temperature furnace with frequent heating-cooling.

2.Suitable for dental furnace with no discoloration, Rapid thermal cycling applications.

3.Suitable for Sintered products with strict thermal field of the environment.

Characteristics

Physical Characteristics

Indications in different atmospheres.

a. CHOOSE THE RIGHT SIZE AND SHAPE: Choosing the right size and shape is very important when selecting a Mosi2 heating element.

Factors to consider include the size of the heating chamber or furnace, the required temperature of the furnace, and even heat distribution.

b. Pay attention to the rated power and voltage of the heating element: The rated power and voltage of the Mosi2 heating element should

also match the furnace to ensure compatibility with the power supply and control system. Overloading a heating element can cause it to fail

 prematurely, while undersizing a heating element can lead to insufficient heating.

c. Choosing the right heating controller: Choosing the right controller is also very important for the efficient operation of the Mosi2 heating

elements. Choosing the correct controller depends on the temperature range required, the rate of heating, and the level of precision and control

 required.

We sell Mosi2 components at reasonable prices, and provide perfect after-sales service and technical guidance.

For bulkbuy, please contact us, you will get a satisfactory price.
