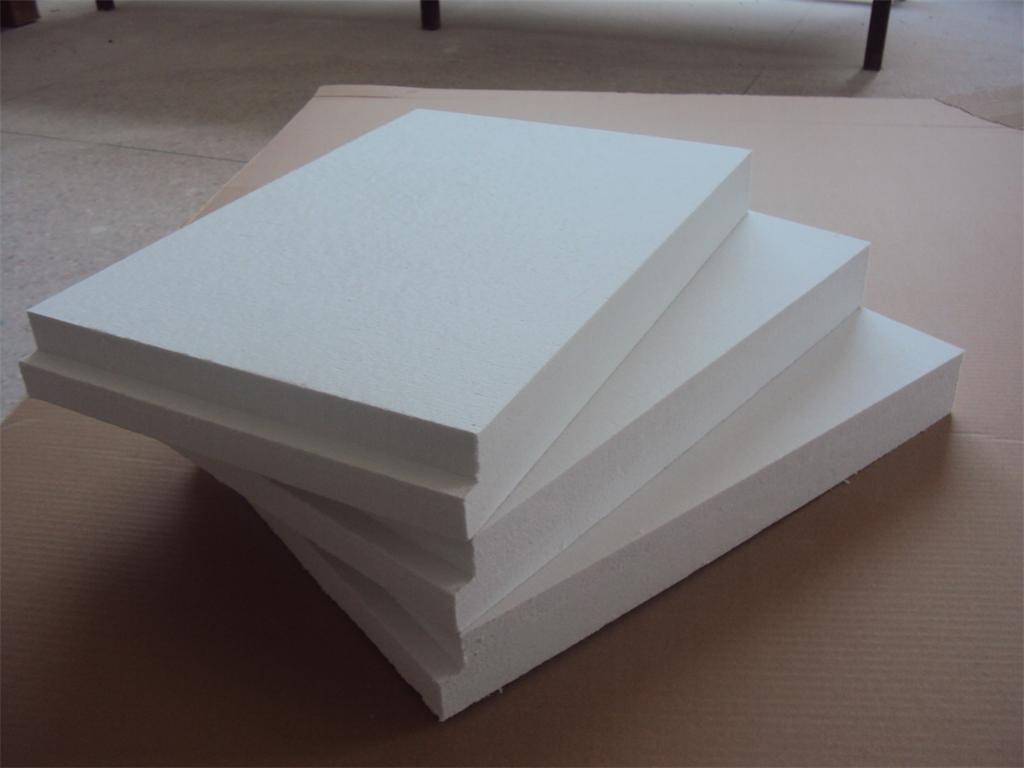

ceramic fiber board

Polycrystalline Mullite Fiber (PMF) is a novel super-light high temperature refractory fiber in the world, one of the whole Al2O3-SiO2 system ceramic fibers, with use temperature of 1800 degrees to 1700 degrees, 200 degrees to 300 degrees higher that that of fiber glass.

Phone :+86 15804230746

WhatsApp : 008615804230746

Email : jiaxincarbide@outlook.com

inquiry

PRODUCT DETAILS

Characteristic

It is characterized in white appearance, smoothness, softness and elasticity, just like pledget. PMF is a polycrystalline mullite fiber in the existing form of mullite crystalling phase, with a unique structure, complicated manufacturing process and high technical content.

High temperature stability to 1600-1800C
Ideal for use as furnace insulation in sintering, heat treating and chemical thermal process systems
Non-Flammable
Excellent thermal shock resistance
Resistance to most chemical attack; it has excellent stability in acid metal slags and is insoluble in most acids
Resistance to oxidation and attack by furnace atmospheres
Resistance to abrasion
Good electrical resistivity
Excellent thermal stability
Can be used as insulation packing in furnace spaces and around furnace sight tubes & ports
Fill in expansion joints and masonry cracks inside of furnaces.

Ceramic fiber board		SS1050C-RBD	SS1260 ST-RBD	SS1260 HP-RBD	SS1350 HA-RBD	SS1430 Zr-RBD	SS1600 PCF-RBD	SS1700 PCF-RBD	SS1800 PCF-RBD
Max Service Temperature(℃)		1050	1260	1260	1350	1430	1600	1700	1800
Density (kg/m³)		220/250/280/300/320/350/380/400					400/450/500/550
Linear hrinkage(%) (After burning)(24h)		≤3.0 950℃	≤3.0 1050℃	≤3.0 1100℃	≤3.0 1200℃	≤3.0 1300℃	≤1.0 1450℃	≤1.0 1550℃	≤1.0 1650℃
(MPa)Modulus of rupture		≥0.3	≥0.4	≥0.4	≥0.4	≥0.4	≥0.6	≥0.6	≥0.6
(%)Loss on ignition		≤8.0					≤4.0
Thermal conductivity rate(W/m.k)	400℃	0.08	–	–	–	–	–	–	–
	600℃	0.12	0.12	0.12	0.12	–	–	–	–
	800℃	0.16	0.16	0.16	0.16	0.16	0.17	0.17	0.17
	1000℃	–	0.23	0.23	0.23	0.23	0.23	0.23	0.23
Chemical Composition(%)	Al2O3	≥37	≥41	≥43	≥45	≥37	≥65	≥70	≥72
	Al₂O₃+SiO₂	≥97	≥97	≥98	≥98	≥84	≥99	≥99	≥99
	ZrO₂	–	–	–	–	≥11	–	–	–
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤1.0	≤1.0	≤1.0
Standard size（LWT）mm		1200/6001000(6-105),1200500(6-105)					1000/90060020-150
Package		Cartons or Pallets					Wooden
Other sizes of products and packages are available as required.
Recommended using temperature:In oxidizing or neutral atmosphere,100~250℃Recommended usingtemperature:In oxidizing or neutral atmosphere,100∽250℃lower than the maximum service temperature,In reductive atmosphere,200~350℃ lower than the maximum service temperature.
