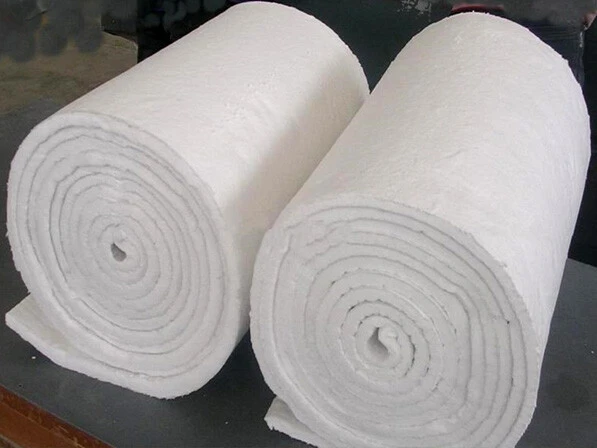

Ceramic Fiber Blanket

Our ceramic fiber blanket is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber inter texture, and the performance of delamination resistance as well as tensile strength.The product does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to the erosion of most chemicals.The physical property like refractory and insulation keep same when meet with oil,water or steam.

Phone :+86 15804230746

WhatsApp : 008615804230746

Email : jiaxincarbide@outlook.com

inquiry

PRODUCT DETAILS

The advantage of ceramic fiber blanket

Name: Ceramic Fiber Blanket
SKU: 0

The ceramic fiber blanket is high strength, needled insulating blanket.The combination of long spun fibers and needling operation produce tough,

resilient and strong blankets, which resist tearing both before and after heating.It can be folded, compressed and encapsulated to produce module.

The characteristics of ceramic fiber blanket

Excellent chemical stability,nonflammable.
Low thermal conductivity and good insulation.
Good tensile strength and springiness.
Excellent performance of soundproofing Good obstructing and resistance to heat-shock.

The technical index of ceramic fiber blanket

Item		SS1260 STD	SS1260 HP	SS1350 HA	SS1400 LZ	SS1430 HZ	SS1600℃
Max Service Temp(℃)		1260	1260	1350	1400	1430	1600
Density (kg/m³)		96/128/140/160					96/128
Linear hrinkage(%) (24h,128 KG/M³)		≤4.01050℃	≤4.0 1100℃	≤4.0 1200℃	≤4.0 1250℃	≤4.0 1350℃	≤1.0 1500℃
(Kpa) (128 KG/M³)Tensile Strength		75	75	55	75	75	75
Thermal conductivity rate(W/m.k)	600℃	0.15	0.15	–	–	–	–
	800℃	0.22	0.21	0.21	0.21	0.21	0.19
	1000℃	0.31	0.30	0.31	0.31	0.31	0.28
Chemical Composition(%)	Al2O3	≥42	≥45	52~55	≥37	≥37	≥70
	Al2O3+SiO₂	≥98	≥98	≥98	≥92	≥83	≥99
	ZrO₂	–	–	–	5~7	15~17	–
	Cr₂O₃	–	–	–	–	–	–
	Others	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
Size(mm)		Length:3600 &7200 &14400; Width:610 &1220; Thickness: 6-50;Other size are available as required.
Package		Woven bags or Cartons,and other package are available as required.
Recommended using temperature:In oxidizing or neutral atmosphere,100~250℃Recommended usingtemperature:In oxidizing or neutral atmosphere,100∽250℃lower than the maximum service temperature,In reductive atmosphere,200~350℃ lower than the maximum service temperature.
