What is aluminum braided straps？

Aluminum braided straps are sic heating element accessories.They are used for connecting silicon carbide heater rods or conducting electricity.

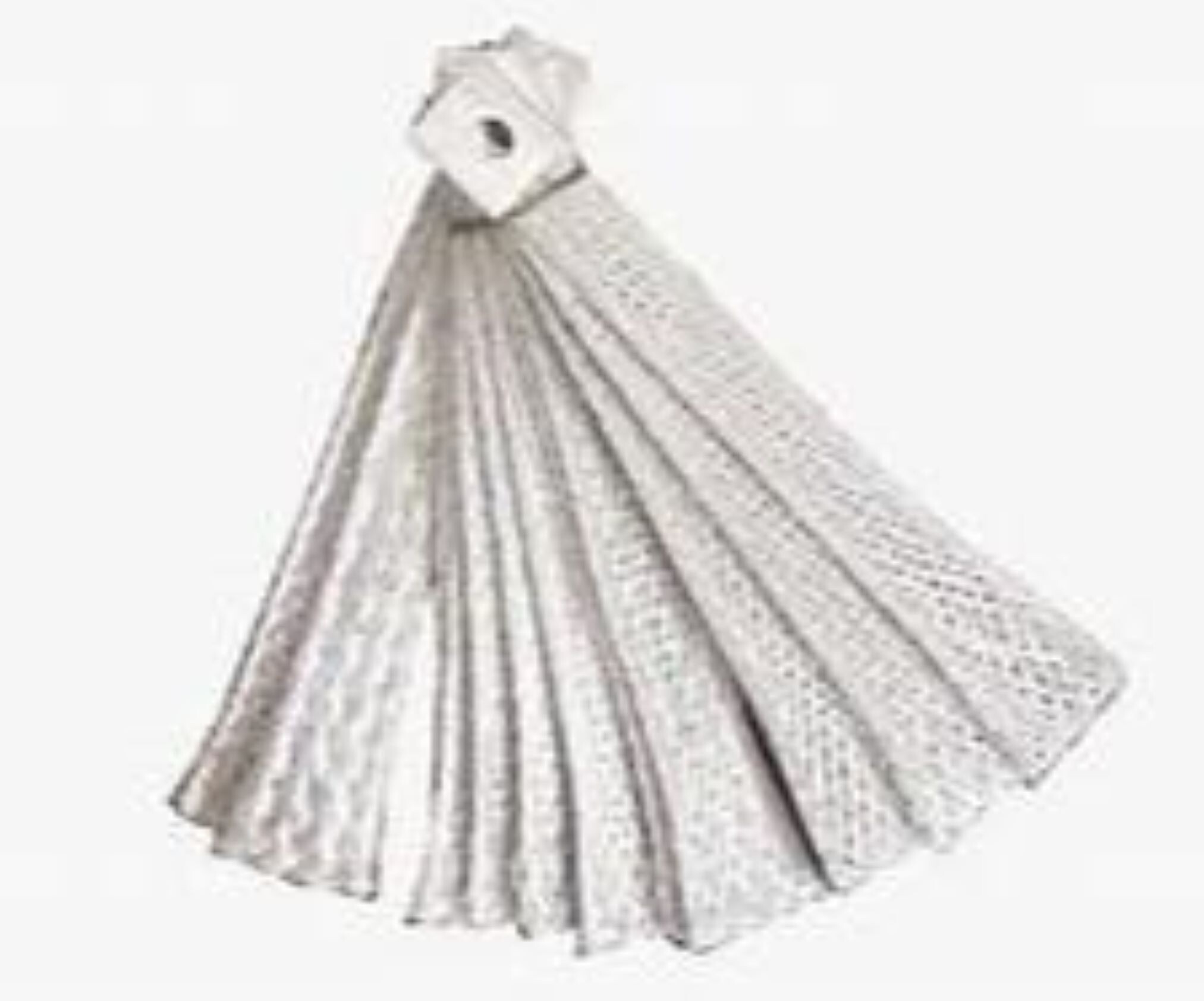

Aluminum flexible braided straps is made of multiple strands of highly conductive thin aluminum wire first twisted into a unit, then braided and

flattened, flexible and high conductivity.The main role of the aluminum braided strap is to connect the external power supply and the sic heating

 element.

Why use aluminum braided straps?

The power carried by the aluminum braided strap is determined by the number of strands and the thickness of the aluminum wire, it is flexible.

Multistrand and fine aluminium flexible braided strap can pass through a larger current and effectively lower the temperature, achieve good heat

dissipation effect, and finally prolong the service life.

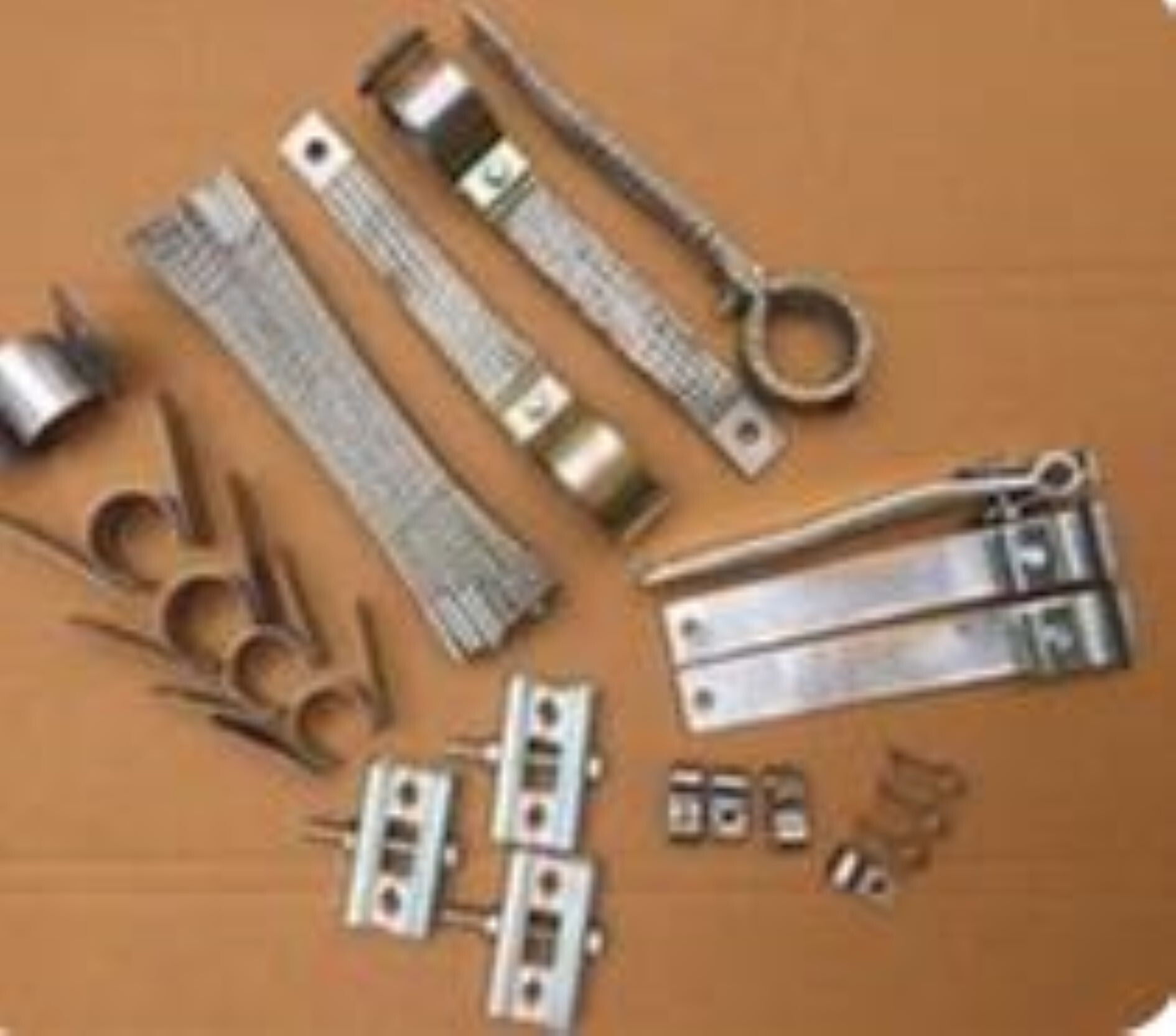

Types of Aluminum braided straps

There are two commonly used types aluminium braided straps, they are single hole (one end has hole) and double holes (two ends have holes).

Single hole aluminum braided straps

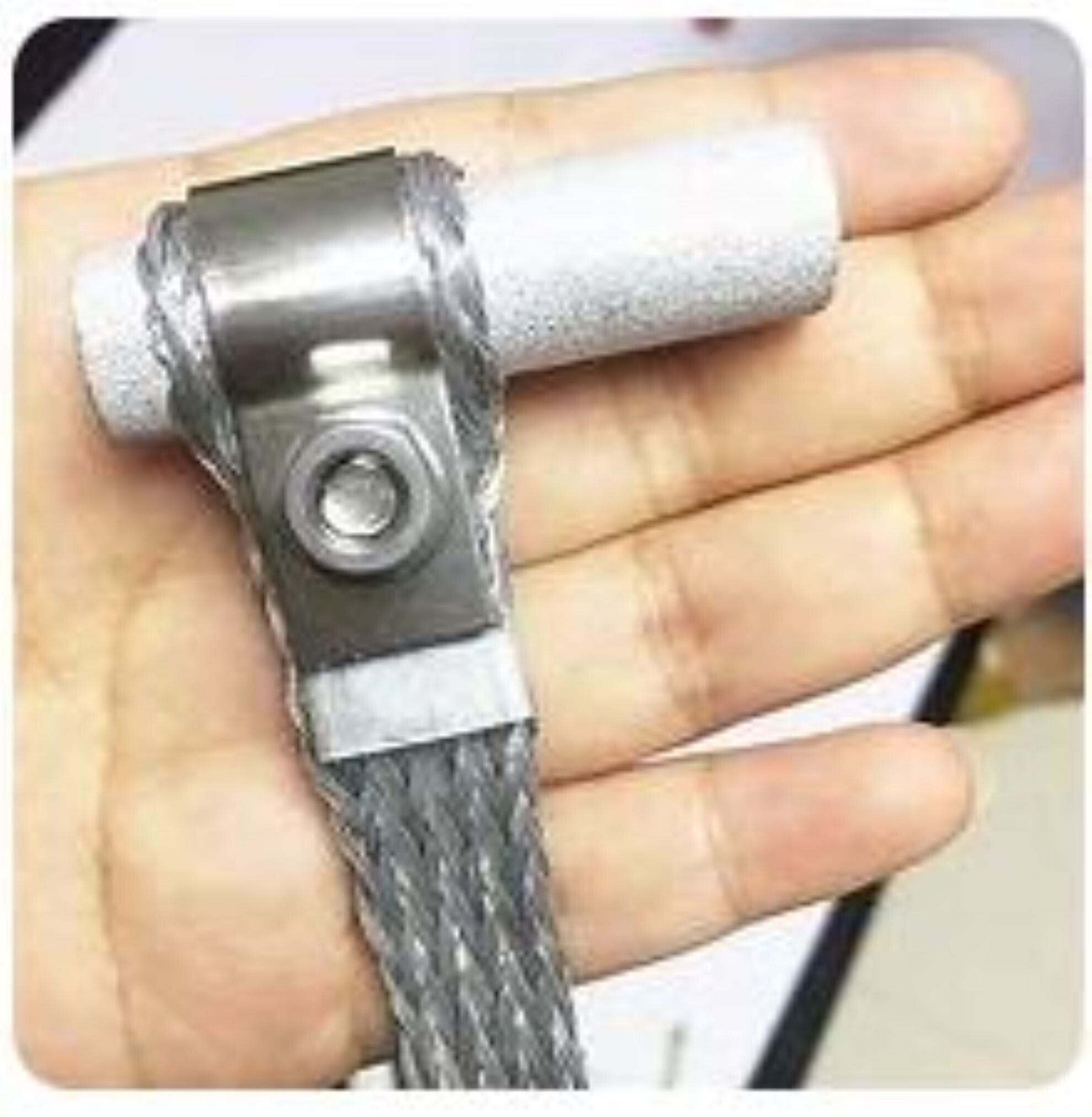

Single hole aluminum braided straps for connecting binding post to elements.

Single hole aluminum flexible braided straps is held in place by stainless steel spring clamps, braided aluminum terminal straps in

25, 50, 100, and 200 amperage ratings are available.

Two holes aluminum braided straps

Two holes aluminum braided straps are for connecting binding post to binding post.

Two holes aluminum flexible braided straps can held in place by stainless steel spring clamps, braided aluminum terminal straps in

 25, 50, 100, and 200 amperage ratings are available.

Ordering specifications

For each diameter of silicon carbon rod, we have designed corresponding braided strips. You should let us know the diameter and

rated current of the silicon carbide rod before buying.
