What Are the Signs That a MoSi2 Heating Element Needs Replacement?

A Practical Guide to MoSi2 Heating Element Inspection, Replacement and Selection for Industrial Furnaces

A MoSi2 Heating Element is one of the most important heating components in a high-temperature furnace. In ceramic production, powder metallurgy, glass processing, laboratory heating, dental zirconia sintering and other thermal applications, the condition of the heating element has a direct effect on heating efficiency, temperature uniformity and production stability.

A Molybdenum Disilicide Heating Element, also commonly called a Silicon Molybdenum Rod or MoSi2 Heater, does not always fail suddenly. In many cases, the first warning appears in furnace operation. The furnace may take longer to reach temperature, a heating zone may become weaker, or the power controller may need to operate at a higher output than before.

For furnace operators, maintenance teams and industrial buyers, the important question is not simply whether the element is broken. The more useful question is:

How can you identify a MoSi2 Heating Element that is approaching the end of its service life before it causes an unexpected furnace shutdown?

This article explains the most common warning signs and provides practical guidance for selecting replacement Furnace Heating Elements for an Industrial Furnace or Electric Furnace.

MoSi2 Heating Element Performance Loss Is Often the First Warning Sign

One of the earliest signs of a weakening MoSi2 Heating Element is a gradual reduction in heating performance.

A furnace that previously reached its normal operating temperature without difficulty may begin to heat more slowly. The difference may be especially noticeable when the furnace approaches the upper part of its temperature range. For example, an Industrial Furnace designed for 1700°C or 1800°C operation may still perform normally at lower temperatures but struggle to maintain stable heating near its maximum operating range.

Common operating symptoms include:

· Longer heating time to reach the normal setpoint

· Higher power demand during the heating cycle

· Slow temperature recovery after loading

· A heating zone that repeatedly falls below the programmed temperature

· Reduced temperature uniformity inside the furnace chamber

· Difficulty maintaining the usual maximum operating temperature

These symptoms should not automatically lead to the conclusion that the MoSi2 Heater has failed. A furnace controller problem, damaged thermocouple, loose electrical terminal, poor conductive strip, power supply issue or changed furnace load can produce similar results.

For this reason, a proper inspection should consider both furnace operation and the actual condition of the Molybdenum Disilicide Heating Element.

Resistance Changes Can Indicate a MoSi2 Heating Element Problem

Electrical resistance testing is one of the most useful maintenance methods for evaluating a Silicon Molybdenum Rod.

When several elements operate in the same furnace zone, their resistance values can be compared. A significant difference between elements that originally had matching specifications may indicate deterioration, internal cracking or connection problems.

However, resistance should not be evaluated using one universal value.

A MoSi2 Heating Element operates at High Temperature and develops a protective silicon dioxide layer during normal service. Because of this operating behavior, resistance characteristics can change over time. The most useful comparison is therefore between elements with similar specifications and service history.

When checking resistance:

· Isolate electrical power before inspection.

· Measure individual elements where the furnace circuit allows reliable testing.

· Compare elements with the same diameter and heated length.

· Check terminal and cold-end connections.

· Record resistance values during regular maintenance.

· Compare new readings with previous inspection records whenever possible.

A single element with a noticeably different resistance value should receive further inspection. However, an abnormal reading does not always mean that the Furnace Heating Element itself is damaged. A loose clamp or poor electrical contact can also affect the measurement.

Visible Damage Should Not Be Ignored

A MoSi2 Heating Element may continue to heat even after physical damage has started. This is why visual inspection during planned furnace maintenance is important.

Inspect the complete element assembly, including:

· Hot zones

· Cold ends

· Transition areas

· Electrical terminals

· Clamps

· Conductive strips

· Insulation fittings

· Element supports

Visible cracks or fractures normally require replacement. Heavy localized thinning, deformation or abnormal deposits can also indicate that the element is approaching the end of its useful service life.

Particular attention should be given to localized damage.

A surface change that develops evenly during long-term High Temperature operation may not always indicate immediate failure. However, if one section becomes significantly thinner, rougher, coated or deformed compared with the rest of the Silicon Molybdenum Rod, the cause should be investigated.

Possible reasons include chemical attack, process vapor contamination, localized overheating, poor element support or contact with furnace components.

Repeated MoSi2 Heater Breakage Usually Means There Is Another Problem

If several MoSi2 Heating Elements fail within a relatively short period, replacing the broken elements without investigating the furnace condition may not solve the problem.

A Molybdenum Disilicide Heating Element performs well at very high operating temperatures, but it can be relatively brittle when cold. Improper handling during installation, excessive clamping force or mechanical contact with refractory materials can create stress points.

Repeated element failure may be related to:

· Incorrect installation

· Excessive mechanical force

· Poor element alignment

· Movement of furnace supports

· Thermal shock

· Excessively aggressive heating or cooling

· Contact with refractory material

· Loose electrical terminals

· Unsuitable furnace atmosphere

The location of a fracture can provide useful information.

A break near the terminal may suggest excessive lead stress or a connection problem. Damage in the hot zone may be associated with thermal cycling, chemical attack or localized overheating. Failure close to a support may indicate rubbing or movement during furnace operation.

Before ordering replacement Furnace Heating Elements, it is important to identify the reason for the previous failure.

1700°C and 1800°C MoSi2 Heating Element Selection

Operating temperature is one of the most important factors when selecting a replacement element.

A 1700°C MoSi2 Heating Element and an 1800°C MoSi2 Heating Element are designed for demanding high-temperature applications, but the actual selection should consider more than the furnace’s maximum temperature.

Buyers should confirm:

· Furnace operating temperature

· Maximum design temperature

· Heating chamber dimensions

· Element diameter

· Heated length

· Cold-end length

· Electrical resistance requirements

· Voltage and circuit arrangement

· Furnace atmosphere

· Installation orientation

An element that physically appears similar may not provide the correct electrical characteristics for the furnace.

For a replacement project, the original element drawing or technical dimensions can be extremely useful. A professional supplier can manufacture or recommend a suitable MoSi2 Heater based on furnace parameters and element specifications.

LIAOYANG JIAXIN CARBIDE CO LTD provides MoSi2 Heating Element solutions for different high-temperature heating applications and can support customized element dimensions according to furnace requirements.

U Type, W Type, I Type and UL Type MoSi2 Heating Elements

The configuration of a Silicon Molybdenum Rod is another important purchasing consideration.

Different MoSi2 Heating Element shapes are used according to furnace design, mounting method and heating chamber requirements.

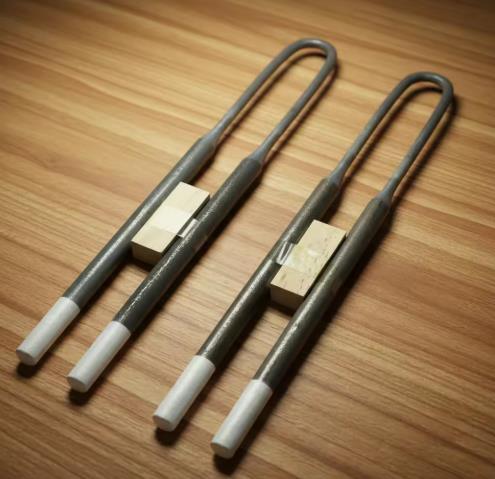

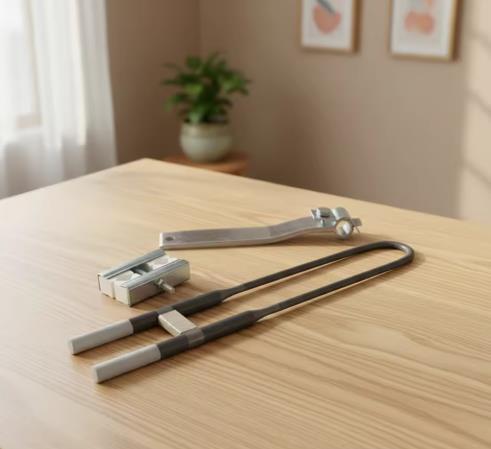

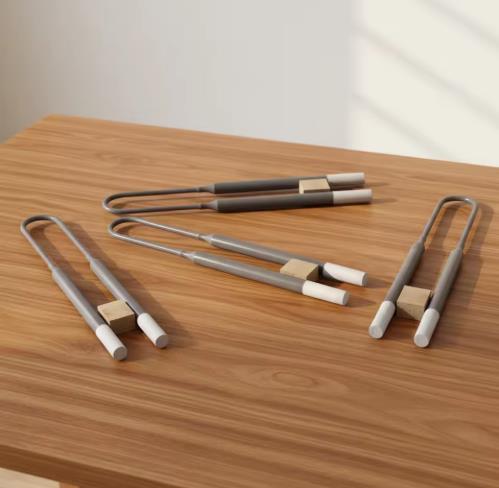

U Type MoSi2 Heating Element

The U Type MoSi2 Heating Element is commonly used in many Industrial Furnace and Electric Furnace designs. Its shape allows two element ends to be connected while the heating section is positioned inside the furnace chamber.

W Type MoSi2 Heating Element

A W Type MoSi2 Heating Element provides a multi-leg configuration and can be suitable for furnace structures requiring specific power distribution and heating arrangements.

I Type MoSi2 Heating Element

The I Type MoSi2 Heating Element is generally selected for applications requiring a straight element configuration. Dimensions, mounting arrangements and electrical requirements should be confirmed before replacement.

UL Type MoSi2 Heating Element

A UL Type MoSi2 Heating Element may be selected when the furnace structure requires a specific connection or mounting configuration.

When purchasing a replacement, buyers should not select only according to element shape. Diameter, hot-zone length, cold-end dimensions and electrical resistance must also match the furnace design.

For customized U Type, W Type, I Type and UL Type MoSi2 Heating Elements, buyers can provide technical drawings, dimensions or photographs of the existing element to LIAOYANG JIAXIN CARBIDE CO LTD for specification confirmation.

When Should You Replace One MoSi2 Heating Element and When Should You Replace a Complete Set?

There is no single answer for every furnace.

Replacing one MoSi2 Heating Element may be practical when the remaining elements have stable performance and similar electrical characteristics.

However, replacing a complete set may be a better choice when several elements show aging or when the furnace has developed temperature uniformity problems.

Mixing one new Molybdenum Disilicide Heating Element with heavily aged elements can sometimes create electrical and thermal imbalance. The decision depends on the furnace circuit design and the sensitivity of the heating process.

Before placing an order, confirm:

· Element quantity

· Shape and configuration

· Diameter

· Heated length

· Cold-end length

· Terminal arrangement

· Operating temperature

· Furnace voltage

· Circuit design

This information helps ensure that the replacement MoSi2 Heater is suitable for the existing Electric Furnace or Industrial Furnace.

Choosing a Reliable MoSi2 Heating Element Manufacturer

Industrial buyers often use search terms such as:

MoSi2 Heating Element manufacturer
Molybdenum Disilicide Heating Element supplier
Silicon Molybdenum Rod manufacturer
1700°C MoSi2 Heating Element
1800°C MoSi2 Heater
U Type MoSi2 Heating Element supplier
W Type Silicon Molybdenum Rod
Industrial Furnace Heating Element
Electric Furnace MoSi2 Heater
Custom MoSi2 Heating Element manufacturer

A reliable supplier should be able to understand that a MoSi2 Heating Element is not selected by appearance alone.

Correct selection requires consideration of temperature, furnace structure, electrical parameters, dimensions and installation method.

LIAOYANG JIAXIN CARBIDE CO LTD focuses on high-temperature heating products and provides MoSi2 Heating Element, Molybdenum Disilicide Heating Element and Silicon Molybdenum Rod solutions for different furnace applications.

For customers operating a High Temperature Industrial Furnace, ceramic furnace, laboratory furnace or Electric Furnace, proper specification confirmation before ordering can reduce installation problems and improve the consistency of replacement parts.

Final Thoughts

A MoSi2 Heating Element does not always fail without warning. Slow heating, increasing power demand, resistance imbalance, visible damage and unstable electrical behavior can all indicate that inspection is necessary.

The best replacement decision is based on several factors rather than one symptom. Furnace operating history, electrical measurements, physical condition and installation conditions should all be considered.

Whether the application requires a 1700°C MoSi2 Heating Element, 1800°C MoSi2 Heating Element, U Type, W Type, I Type or UL Type Silicon Molybdenum Rod, the replacement part should match the actual requirements of the furnace.

For Industrial Furnace and Electric Furnace operators, choosing the correct Furnace Heating Element can help maintain temperature stability, reduce unexpected downtime and support more reliable long-term operation.

LIAOYANG JIAXIN CARBIDE CO LTD can provide MoSi2 Heating Element and Molybdenum Disilicide Heating Element solutions based on furnace temperature, dimensions, element configuration and customized technical requirements.
