SiC vs MoSi2 High Temperature Heating Elements: Which Fits Your Furnace Better?

When a furnace project is still on the drawing board, the heating element often looks like just one line item among many. In reality, that choice can shape temperature stability, maintenance cycles, energy efficiency, shutdown risk, and even how confidently a project moves from commissioning to routine production. For project managers comparing a high temperature heating element for a new build or retrofit, the SiC versus MoSi₂ decision is rarely about which material is “better” in general. It is about which one fits your furnace better.

Both silicon carbide (SiC) and molybdenum disilicide (MoSi₂) are proven high-temperature solutions used across ceramics, glass, powder metallurgy, laboratory furnaces, lithium battery materials, and other thermal processing environments. Yet they behave differently under load, in different atmospheres, and over the life of the furnace. Those differences matter when deadlines are tight, output targets are strict, and unplanned maintenance is expensive.

This comparison focuses on the practical questions engineering decision-makers usually ask before ordering: temperature range, atmosphere compatibility, electrical behavior, service life, replacement strategy, and total project impact.

Start with the furnace duty, not the material name

A common mistake in element selection is beginning with supplier familiarity rather than process requirements. Some teams are used to buying SiC rods, so they default to SiC again. Others specify MoSi₂ for any “high-temperature” project without checking whether the process truly needs that level of performance. A better approach is to define the duty profile first:

• Maximum operating temperature and normal working temperature
• Continuous, intermittent, or batch operation
• Heating rate and recovery time expectations
• Furnace atmosphere: air, oxidizing, neutral, reducing, or special gas
• Product sensitivity to contamination
• Available electrical control system and transformer configuration
• Access for maintenance and element replacement

Once those points are clear, the SiC vs MoSi₂ decision becomes far more straightforward.

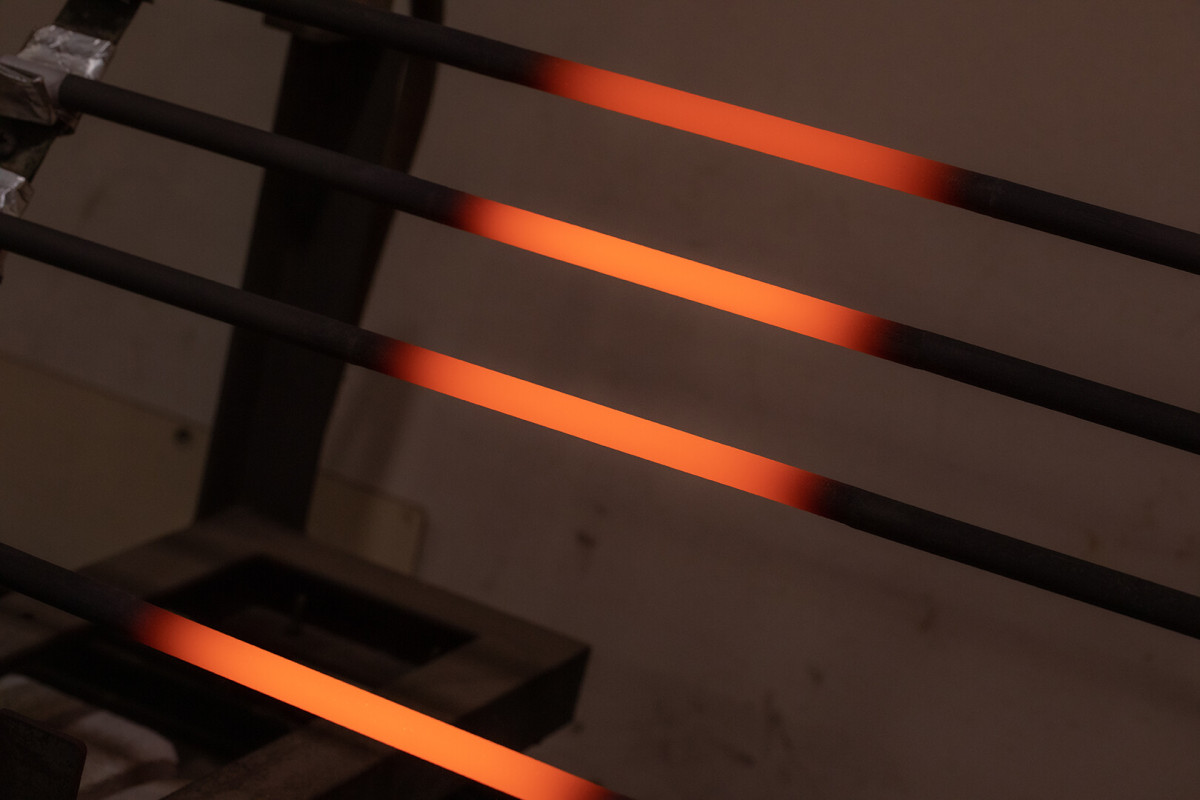

Where SiC heating elements usually make more sense

SiC heating elements have long been a practical choice for industrial furnaces operating in medium to high temperature ranges. They are widely used because they offer a strong balance of performance, cost control, and application flexibility. In many ceramic kilns, glass processing lines, metallurgy furnaces, and general industrial heating systems, SiC remains a dependable working option.

One reason project teams choose SiC is its suitability for applications where operating temperatures are high, but not at the very extreme end of the range. SiC also performs well in many oxidizing furnace environments. It can deliver stable radiant heat and is available in multiple forms, including rod-type and shaped configurations, making it easier to adapt to different furnace structures.

SiC may be the better fit when:

• Your furnace runs in a temperature range where MoSi₂ performance is not necessary
• Initial equipment budget is under pressure
• You need a mature, broadly used high temperature heating element for conventional industrial service
• The furnace layout already supports SiC dimensions, clamps, and electrical connections
• Routine replacement planning is acceptable within your maintenance model

That said, SiC elements do change resistance as they age. This is one of the most important operational characteristics to understand. Over time, resistance increases, which affects power output and may require voltage adjustment or staged replacement planning. For project managers, this is not necessarily a deal breaker, but it does mean the control system and maintenance strategy should be aligned from the beginning.

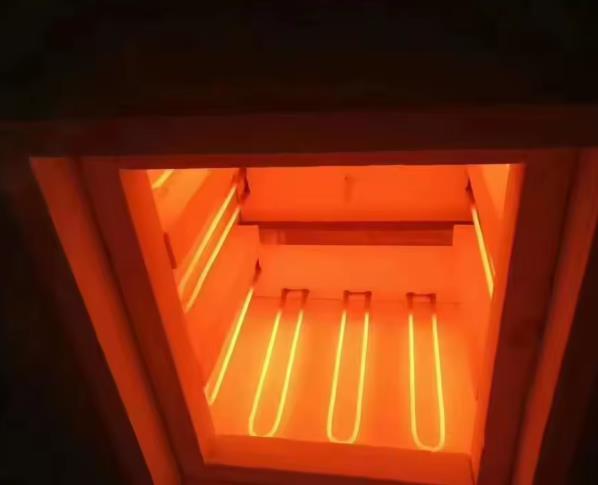

Why MoSi₂ is often chosen for higher-temperature precision

MoSi₂ heating elements are typically selected when the furnace must operate at very high temperatures, especially in oxidizing atmospheres. Their ability to function reliably at temperatures beyond the normal comfort zone of many other heating materials makes them particularly attractive for advanced ceramics, laboratory furnaces, zirconia sintering, and specialized thermal treatment systems.

The key advantage of MoSi₂ is not simply “higher temperature.” It is the combination of high temperature capability and the protective silica layer that forms on the element surface under oxidizing conditions. This layer helps the element resist oxidation and maintain performance in demanding hot-zone environments.

MoSi₂ may be the stronger option when:

• Your process requires sustained operation at very high temperatures
• Temperature uniformity and stability are critical to product quality
• The furnace serves high-value materials where thermal deviation is costly
• You need faster recovery after door opening or batch loading
• The project prioritizes long-term thermal capability over lower upfront element cost

Still, MoSi₂ is not a universal answer. It can be less suitable in certain reducing atmospheres or in situations with severe thermal shock conditions if the operating method is not properly controlled. The furnace design, atmosphere management, and startup procedures all matter.

The temperature question: the most obvious difference, but not the only one

If your team is evaluating a high temperature heating element, temperature is naturally the first filter. In broad industry practice, SiC is often selected for high-temperature duties below the top end of industrial furnace operation, while MoSi₂ is preferred once the process moves into more extreme ranges.

But project managers should be careful here. Maximum theoretical temperature is less useful than actual working temperature under production conditions. Ask:

• What temperature will the hot zone hold for most of the cycle?
• How often does the furnace approach its peak?
• Is the cycle short and aggressive, or long and stable?
• What safety margin is needed for future process changes?

If the furnace spends most of its life well below the upper limits where MoSi₂ becomes essential, SiC may offer a more economical and practical solution. If the process is already near those limits, or future product plans may push the temperature higher, choosing MoSi₂ early can prevent a redesign later.

Atmosphere compatibility can decide the answer faster than price

In real projects, atmosphere is often the factor that settles the debate. Both element types are commonly used in oxidizing atmospheres, but their behavior changes under other conditions.

SiC can work in a range of industrial furnace environments, but its life may be affected by specific gas compositions and operating conditions. MoSi₂ performs very well in oxidizing atmospheres because of the protective surface layer it develops, yet in reducing atmospheres or where corrosive vapors are present, selection becomes more nuanced.

This is where many procurement-led comparisons go wrong. Two elements can look similar on a specification sheet, but if the process atmosphere includes hydrogen, cracked ammonia, carbon-rich vapor, or volatile compounds from the product itself, the risk profile changes. The right question is not “Which element is cheaper?” but “Which element will remain stable in this exact furnace chemistry?”

For that reason, experienced manufacturers often ask for more than target temperature. They ask about atmosphere, loading pattern, furnace dimensions, and even product outgassing behavior before recommending an element structure.

Electrical behavior and control strategy: a hidden cost driver

From a project management perspective, element price is visible. Electrical adaptation cost is not always visible at the quoting stage.

SiC elements are known for resistance aging, which means the electrical system should accommodate gradual changes during service. This can influence transformer tap selection, voltage margin, and replacement management. Teams that ignore this early may face weaker heating performance later, even if the original installation looked correct on paper.

MoSi₂ behaves differently and is often favored in systems requiring stable high-temperature performance, but its current characteristics and startup conditions still need matching with the control architecture. In either case, furnace designers should never treat the element as an isolated component. It belongs to a system that includes power calculation, arrangement density, lead connection design, and thermal field balance.

This is one area where technical support from the element supplier adds real value. Engineering assistance with power calculation, layout design, and installation guidance can reduce commissioning delays and avoid oversights that only become obvious after the furnace is hot.

Maintenance reality: what happens after six months matters more than day one

For many buyers, the practical difference between SiC and MoSi₂ is not seen during startup. It appears later, when production is running and downtime becomes painful.

SiC elements are familiar to many maintenance teams, and replacement procedures are generally well understood. However, because their resistance increases with use, mixed old-and-new replacement can create imbalance if not planned carefully. Some furnaces require grouped replacement or electrical adjustment to maintain even heating.

MoSi₂ elements can offer excellent high-temperature service life in the right atmosphere, but they also require careful handling, correct mounting, and proper operational discipline. If the furnace experiences rough loading practices, accidental impact, or uncontrolled atmosphere changes, the theoretical advantage may not fully translate into real service life.

In other words, the better element on paper is not always the better element in your plant. The real fit depends on how the furnace is actually operated.

A quick decision framework for project leaders

If your team needs a working selection logic, this simplified framework can help:

• Choose SiC first if the application is high-temperature but not ultra-high-temperature, budget sensitivity is significant, the atmosphere is suitable, and maintenance planning can handle resistance aging.
• Choose MoSi₂ first if the furnace must operate at very high temperatures, product quality depends on stable thermal performance, and the process atmosphere supports MoSi₂ service conditions.
• Pause and review engineering details if the furnace atmosphere is complex, the process may change later, or the control system has limited adjustment range.

This is also the point where custom manufacturing becomes useful. Standard elements are not always enough for retrofit projects, unusual hot-zone geometries, or furnaces with special terminal structures. Custom dimensions, electrical parameters, and matching accessories such as clamps, conductive strips, and insulating fittings can make installation cleaner and operation more reliable.

Common selection mistakes that create problems later

Several avoidable mistakes show up repeatedly in furnace projects:

• Choosing solely by maximum temperature without reviewing actual process atmosphere
• Underestimating the effect of resistance change on SiC system design
• Assuming MoSi₂ automatically means longer life in every furnace
• Ignoring replacement accessibility during furnace mechanical design
• Ordering standard sizes before confirming hot-zone layout and lead-end spacing
• Separating heating element selection from transformer and controller planning

Each of these errors can lead to redesign, underperformance, or premature maintenance. For project owners working against launch schedules, those are expensive lessons.

How experienced suppliers support better selection

When comparing element options, many engineering teams need more than a catalog. They need someone who can review drawings, estimate power demand, suggest element arrangement, and flag risks before production starts. That is especially important in industries such as ceramic sintering, dental zirconia, non-ferrous metallurgy, laboratory furnaces, and new energy materials, where thermal consistency directly affects product value.

Manufacturers with both SiC and MoSi₂ production capability are often in a stronger position to advise objectively, because they can compare two viable routes instead of pushing only one. Companies such as Liaoyang Jiaxin Carbide Co., Ltd., with experience in silicon carbide heating rods, molybdenum disilicide elements, protective tubes, graphite components, and related furnace accessories, typically support this process through drawing-based customization, power calculation, heating layout design, inspection control, and after-sales technical guidance. For project managers, that kind of support can reduce uncertainty during procurement and commissioning.

The better fit is the one that stays aligned with your process

There is no universal winner in the SiC versus MoSi₂ comparison. SiC remains a widely trusted high temperature heating element for many industrial furnaces because it balances performance and cost well. MoSi₂ stands out when operating temperatures climb higher and process precision becomes more demanding.

The best decision comes from matching the element to the real furnace duty: temperature range, atmosphere, control method, maintenance capability, and future production plans. If those factors are reviewed carefully at the selection stage, the heating element stops being a risk item and becomes a stable foundation for the whole thermal system.

For project leaders, that is the real goal—not just buying an element, but choosing one that keeps the furnace performing the way the project promised it would.
