What Specifications Matter Most When Buying MoSi2 Heating Elements?

When buyers search for a Mosi2 Heating Element, they are usually not asking what it is. They are trying to figure out whether the element will actually work in their furnace, how long it will last, and whether the purchase price will hold up once installation losses, downtime, and replacement cycles are included. That is the real procurement question.

MoSi2 elements sit in a difficult part of the heating market. They are attractive because they can support very high operating temperatures and are widely used in high-temperature furnaces, but they are also sensitive to operating conditions, installation quality, load matching, and atmosphere. A specification sheet can look acceptable while the element still performs poorly in a real line. For procurement teams, the useful task is not to compare brochures. It is to identify which specifications are decision-critical and which ones are secondary.

Start With the Furnace, Not the Element

The first mistake is buying by nominal temperature alone. A Mosi2 Heating Element is not selected in a vacuum; it is selected against furnace geometry, insulation quality, heating pattern, working atmosphere, batch cycle, and control strategy. A supplier may quote a temperature rating that looks sufficient, but if the furnace repeatedly runs near the top of that range, the element may age faster than the maintenance budget assumes.

In practice, procurement should begin with three questions: what temperature does the furnace actually run at, how often does it cycle, and what atmosphere is inside the chamber during operation and standby. Those answers matter more than marketing language. Oxidizing atmospheres, reducing atmospheres, inert gas conditions, and vacuum-adjacent environments can affect the applicability of MoSi2 differently, and the wrong assumption here turns a low-cost purchase into a repeat failure.

The Specifications That Matter Most

Not every technical parameter carries equal weight. For purchasing, the most important specifications are the ones that directly affect fit, reliability, and replacement frequency.

Temperature rating usually gets the most attention, but it should not be treated as a stand-alone buying criterion. Two elements with the same nominal rating may behave very differently if one has better resistance stability, better hot-zone control, or better batch consistency. For industrial buyers, the total cost of ownership is often decided by those less visible details.

Resistance Consistency Is Not a Minor Detail

Resistance consistency is one of the most overlooked specifications in MoSi2 procurement. It affects how evenly power is distributed across the furnace and whether the controller can maintain stable zones without overloading individual elements. If resistance varies too widely across a batch, the furnace may still run, but maintenance and temperature uniformity become harder to manage.

This matters most when buyers are replacing multiple elements at once or building a new furnace with strict zone control. If the supplier cannot provide stable resistance values from batch to batch, the purchasing team may face unequal heating, control instability, or shortened service life in the hottest positions. In other words, a slightly cheaper element with poor resistance consistency can create a more expensive operating profile.

Size and Shape Must Match the Furnace Reality

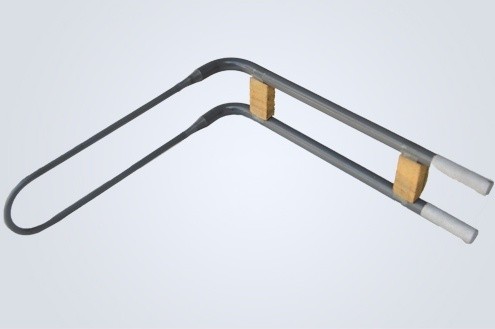

Element length, diameter, leg geometry, and mounting clearance are not catalog trivia. They determine whether the element fits the furnace structure and whether it can expand and contract without mechanical stress. MoSi2 elements are exposed to high thermal loads, so installation mistakes are often converted into cracking, sagging, terminal failure, or uneven heating.

For buyers working with legacy furnaces, this is especially important. A supplier should be able to work from drawings, technical parameters, or furnace photos, not just a standard model code. Customization capability is often worth more than a small price difference because the wrong geometry can delay commissioning or force field modifications that cost more than the element itself.

Atmosphere Compatibility Is Where Many Purchases Go Wrong

MoSi2 performs well in many high-temperature oxidation environments, but that does not mean it is automatically suitable for every furnace process. Atmosphere compatibility should be checked carefully in applications involving reducing gases, fluctuating oxygen levels, strong process fumes, or repeated cold-start conditions. Procurement teams should not assume that “high-temperature resistant” means universally resistant.

If the furnace process includes aggressive byproducts, contamination risk, or unusual gas flow patterns, those conditions should be disclosed to the supplier during quoting. A reputable manufacturer will ask for them. If the vendor does not ask, that is a warning sign, because the element may be selected on generic assumptions rather than actual service conditions.

Do Not Treat Price Per Unit as the Final Cost

For purchasing, the unit price is only the beginning of the comparison. A cheaper element may have a shorter service life, wider resistance spread, or poorer packaging, which increases failure risk before the furnace is even back in production. In high-temperature lines, one unplanned shutdown can outweigh the savings from a lower purchase price.

A better comparison is cost per operating hour or cost per firing cycle, although exact calculation depends on the process and should be verified from the buyer’s own production data. If two suppliers quote very different prices, procurement should ask what explains the gap: raw material grade, sintering process, quality inspection, dimensional tolerance, packaging method, or after-sales support. If that answer is unclear, the lower bid is not automatically the better procurement outcome.

What to Ask a Supplier Before You Buy

Before placing an order, procurement teams should ask for more than a quotation and a basic datasheet. The questions below usually expose whether the supplier understands industrial use conditions or only sells standard catalog items.

• What resistance tolerance can be controlled on a batch basis?
• Can the element be customized to our furnace drawings and operating temperature?
• What atmosphere conditions are acceptable, and which are not recommended?
• How is dimensional inspection handled before shipment?
• What packaging is used to prevent transit damage for long export routes?
• Can the supplier support installation guidance or furnace matching advice?

These questions are not administrative. They are practical checks on whether the supplier can support the full use cycle, from selection to installation to replacement.

Quality Control and Traceability Matter More Than Claims

MoSi2 heating elements are consumables, but they are not simple consumables. Batch-to-batch variation can show up as uneven heating, uneven oxidation behavior, or unexpected early failure. Procurement teams should therefore pay attention to whether the supplier has a controlled inspection process for raw material screening, high-temperature sintering, resistance testing, and dimensional verification.

For export buyers, traceability and documentation also matter. If a problem appears after installation, the ability to link the delivered batch back to inspection records can save time during root-cause analysis. That does not eliminate failure, but it reduces the cost of confusion. In industrial purchasing, that is a real advantage.

When Customization Is Worth Paying For

Not every application needs full custom engineering, but many furnace programs benefit from it. Customization becomes important when the furnace has unusual geometry, dense loading, narrow terminal spacing, aggressive thermal cycling, or strict temperature uniformity requirements. In those cases, standard dimensions may technically fit but still underperform.

Good suppliers can support more than supply. They can help with heating power calculation, heating layout design, and operation guidance. That support is not a marketing extra. It reduces the probability of buying the right element in the wrong configuration, which is one of the most common and expensive procurement failures in high-temperature equipment.

A Practical Buying Logic

For procurement teams, the cleanest way to evaluate a Mosi2 Heating Element is to move in this order: furnace condition, atmosphere compatibility, element sizing, resistance control, supplier quality system, and then price. If the order is reversed, the buyer often optimizes the quotation instead of the operating outcome.

That matters especially in industries such as ceramic sintering, lithium battery production, powder metallurgy, glass processing, and laboratory furnace operations, where downtime and thermal stability have direct commercial consequences. In these settings, the right element is not the one with the most attractive headline specification. It is the one that matches the process reliably enough to keep the furnace predictable.

For most buyers, the decision comes down to this: a MoSi2 element should be purchased as part of a working heating system, not as a standalone commodity. If the supplier can prove fit, consistency, and support, the purchase is easier to justify. If not, the apparent savings usually show up later as maintenance cost.
